6DoF precision stage corrects alignment errors
Optical-grade precision dispensing function and glue needle guidance
Dispensing quality judgment and compensation
Positioning accuracy Cpk > 1.33 with
XYZ: 10um
Pitch/Yaw/Roll: +/-0.2°
.png)

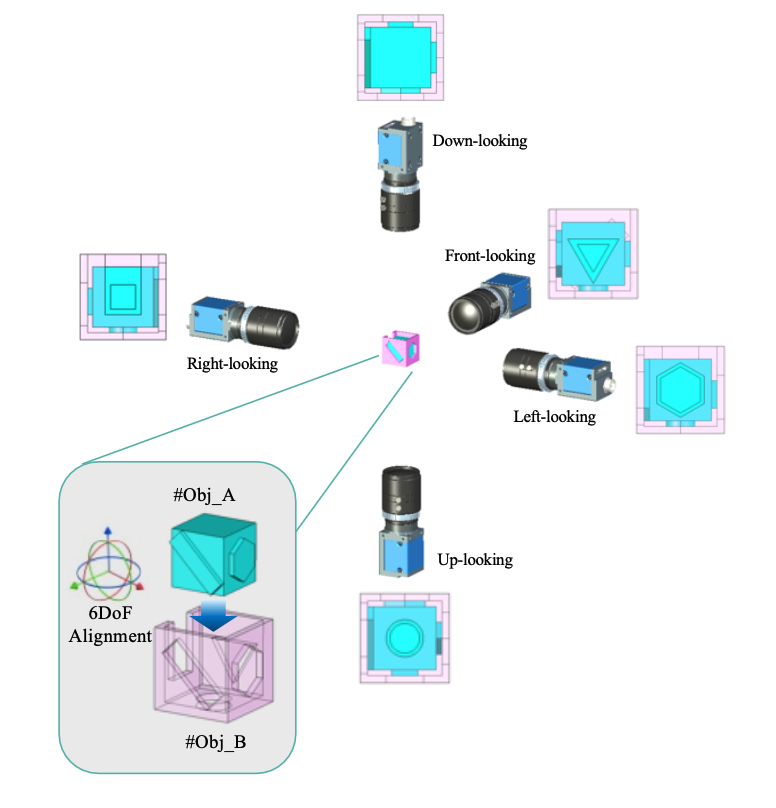

Multi-perspective Alignment
5x real-time vision calculations with two optical parts
6DoF precision stage corrects...
6DoF precision stage corrects...
Detail
6DoF precision stage corrects alignment errors
Optical-grade precision dispensing function and glue needle guidance
Dispensing quality judgment and compensation
Positioning accuracy Cpk > 1.33 with
XYZ: 10um
Pitch/Yaw/Roll: +/-0.2°
